VIS-All® 3D interactive 3D visualisation and planning of routes
- Compatible with numerous interfaces and connections
- Simple integration into existing CAD and GI systems
- convert 2-dimensional planning data into a 3D view
- Versatile in use
Wide range of functions – from energy supply to urban and transport planning
3D visualisation can be used in many different ways. The VIS-All® software offers extensive possibilities for various applications in different sectors. In addition to numerous industrial applications, it also enables infrastructure planning for municipalities and local authorities, as well as the transition to renewable energies.
-
- VIS-All® Interface
-
- Standortplanung für Windkraftanlagen
-
- Lärmschutzplanung einer Bahnstrecke mit VIS-All®
-
- PV-Anlagenplanung und Visualisierung mit VIS-All®
-
- Infrastrukturplanung in VIS-All®
-

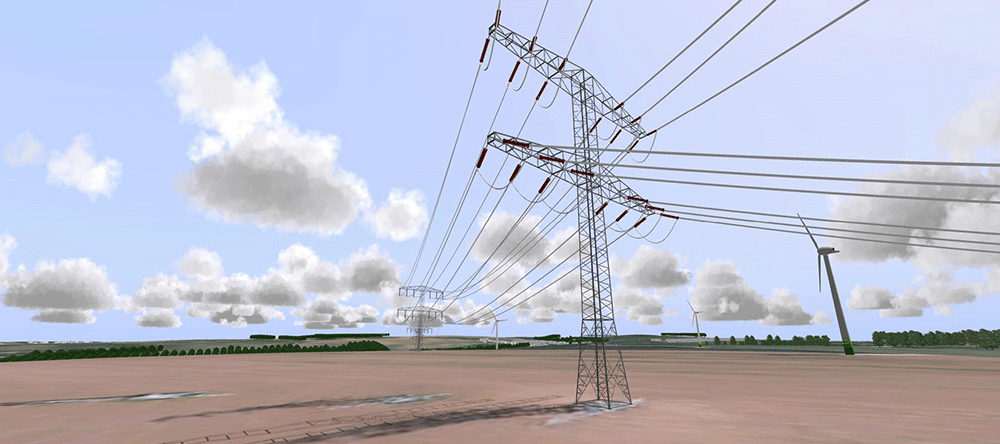

- Infrastrukturpanung - Beispiel für Freileitung in VIS-All®
-
- Stadtplanung mit VIS-All®
-
- Planung technischer Anlagen in VIS-All®
A product from
Part of the Konzept Informationssysteme Group
Oehrenstöcker Straße 39
98693 Ilmenau, Germany
Download
Visit the VIS-All® website for more information
Urban planning with perspective
VIS-All® enables modern urban planning where many aspects are considered in the planning process. The visualisation is based on the 3D building models LOD1 or LOD2 provided by service providers and state survey authorities, as well as the digital terrain model and aerial photographs. Data from the municipality’s CAD/GIS can also be used.
Determines the best location for wind turbines
The efficient use of renewable energy requires good planning. By visualising the system, the project can be communicated transparently at an early stage. Lines of sight and shadows can be analysed to determine any adverse effects on residents and traffic. Distances to residential buildings and protection zones can be determined using the integrated measurement function.
Shadow simulation for photovoltaic system
The efficiency of solar systems can be determined through the exact calculation of real shadows caused by buildings, mountains and trees. The solar system can be planned using a large selection of 3D models. VIS-All® then makes it possible to analyse the course of the shadow and measure the shadow length at different times of the year, day and night!
3D visualisation of noise abatement solutions
Visualisation of planned noise abatement measures for transparent and comprehensible planning. Noise barriers, walls or even tunnels can be shown and the extent of the measures can be clearly communicated to those affected.
System requirements
Minimum requirements:
- Processor: AMD or Intel® 64-Bit Multi-core processor (2,5 GHz or faster)
- Graphics card: 2 GB VRAM, shader model 3.0
- memory: 8 GB RAM
- Hard disc space: 20 GB free memory
- Operating system: Windows 10 64-Bit, Windows 11 64-Bit
Recommended requirements:
- Processor: AMD or Intel® 64-bit multi-core processor (3 GHz or faster)
- Graphics card: 16 GB, shader model 3.0
- Working memory: 32 GB
- Hard drive memory: 50 GB free memory, SSD
- Operating system: Windows 10 64-bit, Windows 11 64-bit
The information on manufacturers and products is provided completely free of judgement and without any liability claims.
(Status: May 2023)
